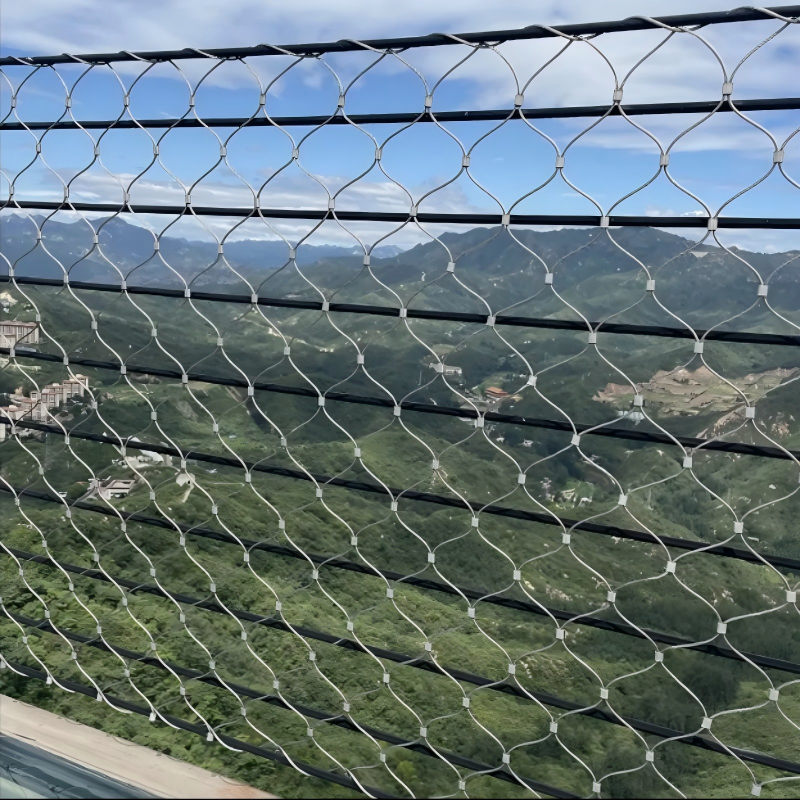

Easy For Installment Stainless Steel Wire Cable Mesh For Scenic Area Bridge Safety Net
Stainless Steel Wire Cable Mesh, the stainless steel grade includes SUS 304, SUS 304L, SUS 316, SUS 316L.
The structures of the Stainless Steel Wire Cable Mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire rope diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
The application of Stainless Steel Wire Cable Mesh:Staiway Belcony Balustrade Or Railing Aviary Mesh, Bird Netting, Animal Enclosure, Zoo Mesh, Agriculture, Residential, Sports, Fall Security, Etc.
cable structures
The stainless steel wire rope mesh are hand-made from the stainless steel wire rope, there are two types: wove type mesh and ferrule type mesh.
Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
Stainless steel ferrule mesh
has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
| Flexible Stainless Steel Cable Mesh(Ferrule Type) |
| Item No.s |
Cable Diameter |
Mesh Opening Size
(W×H) |
Normal Break
|
| |
inch |
mm |
inch |
mm |
ibs.
|
| YT-3212F |
1/8 |
3.2 |
4.75×8.23 |
120×207.8 |
1,600 |
| YT-3210F |
1/8 |
3.2 |
4×6.9 |
102×176.7 |
1,600 |
| YT-3211F |
1/8 |
3.2 |
3.5×6.15 |
90×156 |
1,600 |
| YT-3212F |
1/8 |
3.2 |
3×5.2 |
76×131.6 |
1,600 |
| YT-3213F |
1/8 |
3.2 |
2×3.46 |
51×88.3 |
1,600 |
| YT-3214F |
3/32 |
2.4 |
4×6.9 |
102×176.7 |
920 |
| YT-3215F |
3/32 |
2.4 |
3.55×6.15 |
90×156 |
920 |
| YT-3216F |
3/32 |
2.4 |
3×5.2 |
76×131.6 |
920 |
| YT-3217F |
3/32 |
2.4 |
2.4×4.16 |
60×104 |
920 |
| YT-3218F |
3/32 |
2.4 |
2×3.46 |
51×88.3 |
920 |
| YT-3219F |
5/64 |
2.0 |
3×5.2 |
76×131.6 |
676 |
| YT-3220F |
5/64 |
2.0 |
2.4×4.16 |
60×104 |
676 |
| YT-3221F |
5/64 |
2.0 |
2×3.46 |
51×88.3 |
676 |
| YT-3222F |
5/64 |
2.0 |
1-1/2×2.6 |
38×65.8 |
676 |
| YT-3223F |
1/16 |
1.6 |
1.2×2.08 |
76×131.6 |
480 |
| YT-3224F |
1/16 |
1.6 |
2×3.46 |
51×88.3 |
480 |
| YT-3225F |
1/16 |
1.6 |
1-1/2×2.6 |
38×65.8 |
480 |
| YT-3226F |
1/16 |
1.6 |
1.2×2.08 |
30×52 |
480 |
| YT-3227F |
1/16 |
1.6 |
1×1.73 |
25.4×44 |
480 |
| YT-3228F |
3/64 |
1.2 |
1-1/2×2.6 |
38×65.8 |
270 |
| YT-3229F |
3/64 |
1.2 |
1.2×2.08 |
30×52 |
270 |
| YT-3230F |
3/64 |
1.2 |
1×1.73 |
25.4×44 |
270 |
| YT-3231F |
3/64 |
1.2 |
4/5×1.39 |
20×34.6 |
270 |
It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and
Fall Security, Etc.
Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Located in the native land of wire mesh in China. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.
Yuntong aims to become one of the first-class companies integrating scientific research, production and management together. Our goods are high in quality at favorable prices. We produce and supply metal wire mesh according to ISO9001 Quality Standards. 90% of our products are for export and sell well in the USA, Germany, Japan, Canada, South Korea, and other countries and regions.
